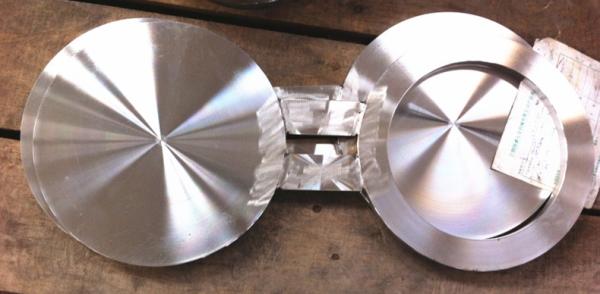

Figure 8 flange/spetacular blind

F316L spectacle blind flange

Standard: ANSI/ASME B16.48

Type : Figure 8 blank, spectacle blank, spectacle blind flange

Nominal pressure:150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb

Nominal size:  1/2inch-24inch

Material: ASTM A182 F316L

Technique: firstly we made paddle blank and spacer separately, and then we connect them by a web or tie bar

Brand: TC METAL

Technology: by forging

Raw material: ingot, bar or billet

Certificate: MTC or EN10204 3.1 as per NACE MR0175

Quality system: ISO9001; PED 97/23/EC

Lead time: 15-30 days depending on quantity

Payment term: T/T, L/C, D/P

Origin: Jiangyin, China

Loading port: Shanghai, China

Package: suitable for seaway transportation, ply wooden case with plastic film sealed

MOQ:1 ton

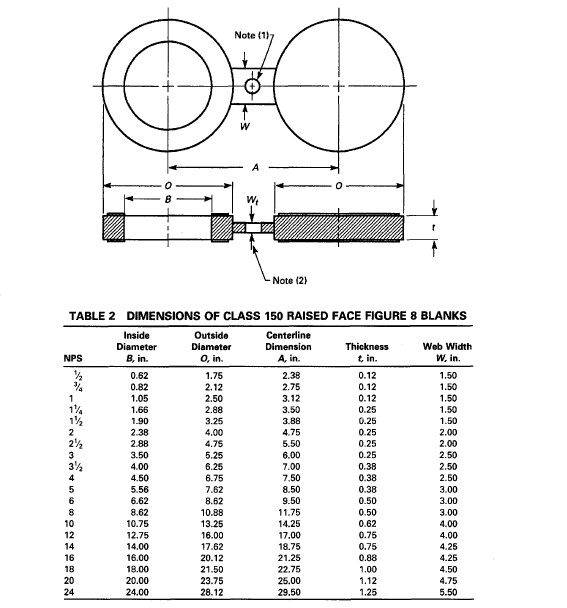

Drawing:

Figure 8 flange/spetacular blind Images
